NLJscan

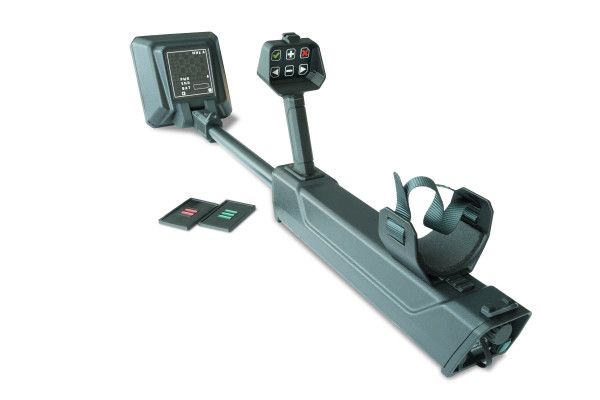

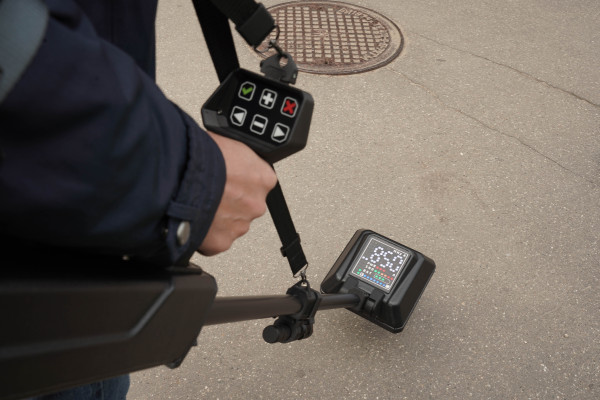

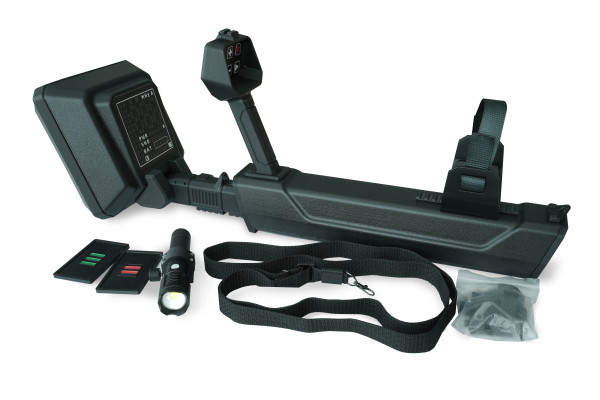

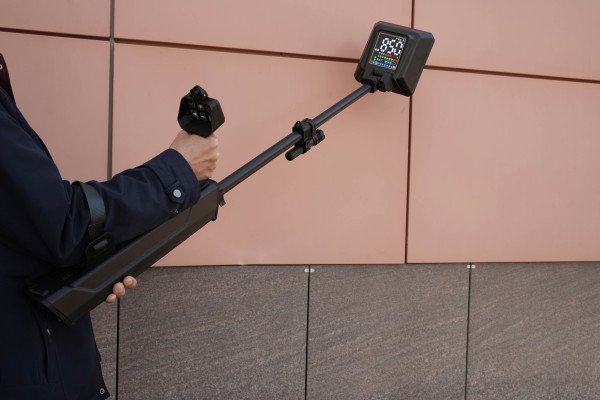

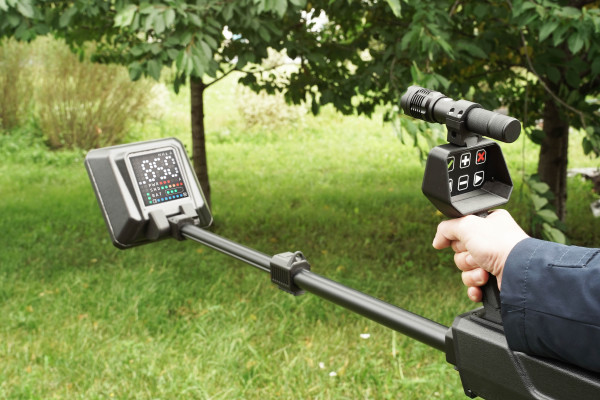

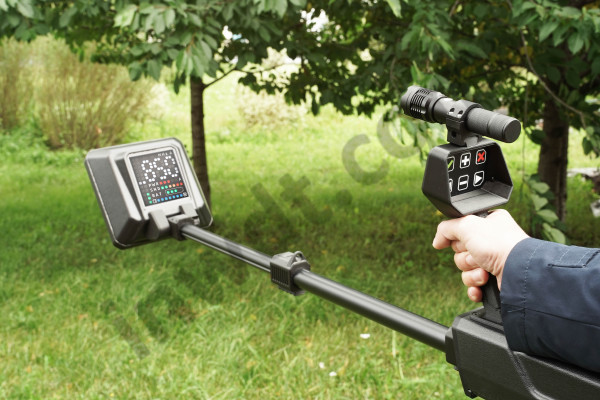

NLJscan 900 by INWARD DETECTION is a high-precision anti-terrorist Non-Linear Junction Detector designed to locate concealed electronics, such as IED components, electronic fuzes, hidden UAVs and UAV parts and smuggled large-size devices like computers etc. Ergonomic design is comfortable for both outdoor and indoor operations.


Key features:

  • Advanced Transmitter & Receiver:
  • Sub-GHz frequency is optimal to penetrate wood, concrete and soil;
  • 1W constant wave transmitter minimizes risk of triggering remotely controlled devices and is safe
    enough for personnel and equipment;
  • Numerous frequency channels improve performance in case of interference and wave reflections;
  • Manual and automatic power adjustment prevents receiver overload and increases location accuracy;
  • Optimized user-friendly interface makes the training much faster;
  • The device distinguishes between corroded metals and electronics by receiving and comparing 2nd and 3rd harmonics;
  • The detector is meant to be held in one hand, no matter left or right, due to the specially designed
    ergonomic grip;

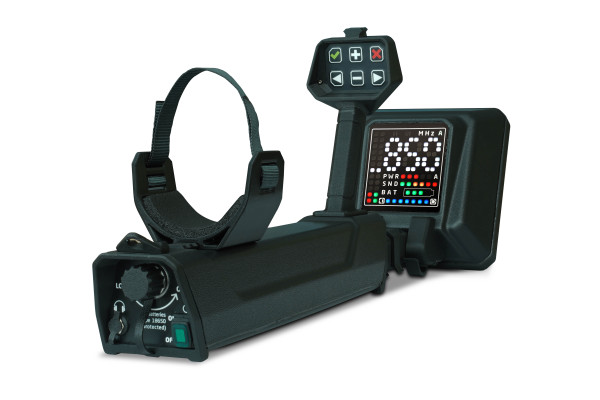

  • The LED display with adjustable brightness can be seen clearly both in the night and the daylight;
  • Informative audio signal (indicates level and harmonic) with adjustable volume shows precise location
    even without looking at the display;
  • Water-protected (IP67) antenna with replaceable soft covers and humidity protected (IP54) main
    case are optimal for outdoor usage;
  • Uses commercially available 18650 Li-ion batteries, around 4 hours of continuous work on a single
    charge.

NLJscan - General Specifications

GENERAL SPECIFICATIONS
Frequency range, MHz 850,1-900,1
Number of channels 51
Frequency step, MHz 1
Transmitter maximum average power, W Not more than 1
Transmitter modulation Continuous wave (CW)
Detected harmonics 2nd, 3rd
Receiver sensitivity, dBm -125
Antenna polarization Circular
Indication Visual (on-antenna display);
Audible;
Vibration
Power supply 4 replaceable Li-ion 18650-type batteries

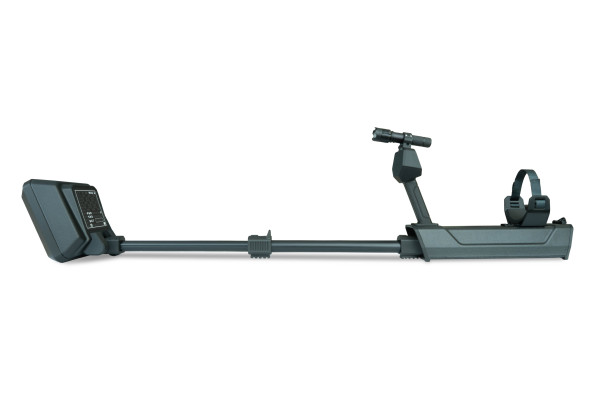

Dimensions: - Overall Length (min/max), cm: ≤ 70 / ≥ 125
- Antenna Unit (L x W x H), cm: ≤ 20x20x12
- Control Unit (L x W x H), cm: ≤ 46x9x28
Ingress protection (IEC-60529): Antenna unit: IP67
Control unit: IP54
Operating temperature range, °C From -25 to +55
Operating humidity up to 95% (non-condensing)
Operating weight, kg Max. 2,5
Total set weight, kg ≤10
