CTXscan-2P

In INWARD DETECTION we are pioneers of premium betatron technology for high-energy security screening. Unparalleled reliability and safety, along with green energy-saving and cost-saving solutions while maintaining high accuracy and efficiency - these are the core of our approach to vehicle scanning, proven by decades of experience.

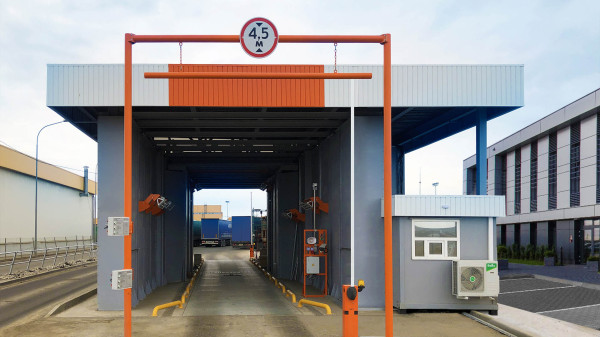

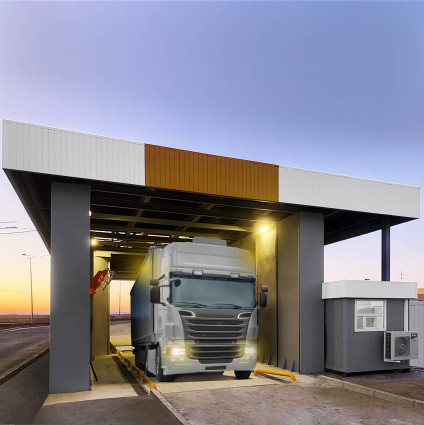

CTXscan-2P is our Multi-Energy Dual-View X-Ray screening system of Drive-Through Portal type.

A single-view imaging quite often isn’t enough for informative truck & container screening. That’s why we developed a betatron-powered dual-view fixed scanner CTXscan-2P, which consumes even less energy than common single-view linac-based solutions.

CTXscan-2P is easier to repair and keeps on scanning by one X-ray source while the other is under maintenance, thus the system operates seamlessly.

Key features:

  • Greener approach to energy consumption: 3 to 10 times less electricity needed for the accelerator

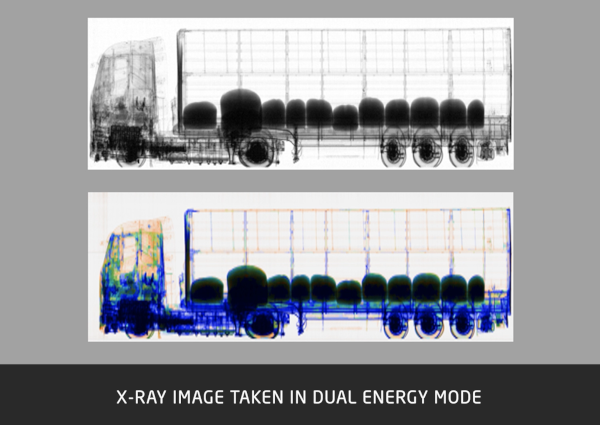

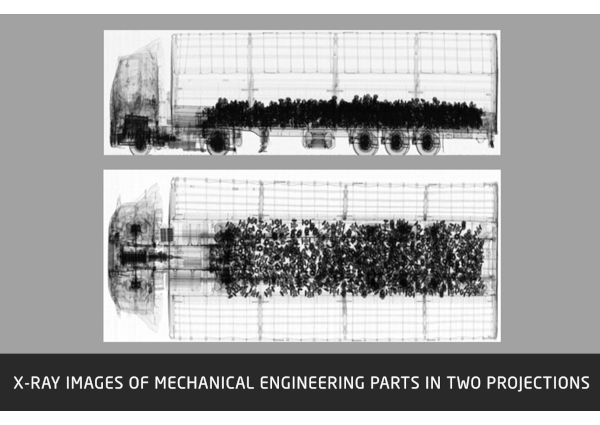

  • Dual view for more informative screening

  • Scanning trucks with drivers inside: low dose for the cab switches to high dose for the cargo

  • The maintenance of betatrons is cheaper and  can be done right at the usage site


CTXscan-2P - General Specifications


Inspected object dimensions (W x H), mm in high energy mode 3000 x 4700
Building dimensions (L x W x H), m 24,6 x 11,6x 7,8*
Maximum weight of inspected object, kg 55 000*
Max. radiation dosage, μSv per scan less than 5
Max. radiation dosage to driver, μSv
per scan		 less than 0,3
Throughput, vehicles/trucks per hour up to 120
Scan speed, km/h 5-10
Number of generators 2
Type of accelerator Betatron
High Energy X-ray generators energy, MeV Switchable between 4 and 9 with 0,1 steps
Steel penetration in high energy mode, mm 340

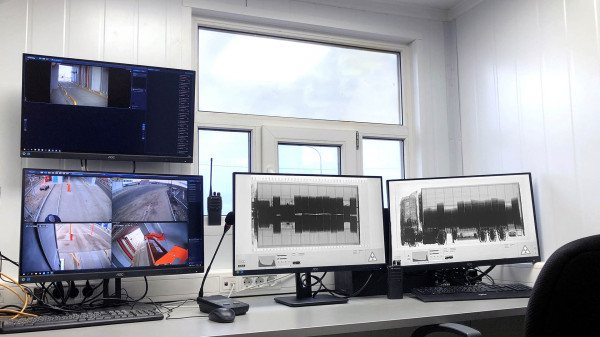

Visual and processing means PCs with several high resolution TFT displays and a special image and data storage system
Digital image processing Image storage, magnification up to 16 times, sharp and contrast enhancement, filtering, segmentation
Power built-in generator or three-phase AC power circuit 380V/50Hz
Power consumption, kW up to 30
Operating temperature/Humidity -45 °C to +50 °C/up to 90% range can be extended
Dosage specifications
Dose in the environment Average <0,5 μSv/h <1mSv/an at the boundary
Dose rate in operator room Background level
