CTXscan-M

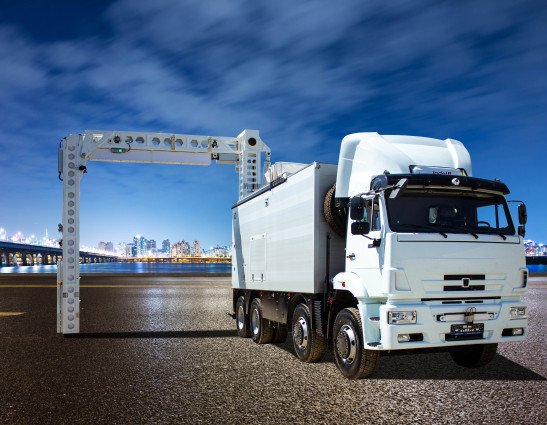

CTXscan-M is a classic truck-based mobile solution, designed for relocatable checkpoints at ports and borders.

A unique mobile system based on betatron, which ensures seamless operation even in harsh climate environment, such as hot temperature and humidity. With betatrons, repair and maintenance are much easier and cheaper, as the works can be done right at the usage site. The safe cab scanning technology makes operations faster. Dual energy mode highlights various types of materials for more accurate detection.

KEY FEATURES:

  • A greener and cost-saving technology of screening, consuming up to 10 times less electricity than others

  • High reliability and climate resistance due to less overheating and ingress sensitivity

  • Scanning trucks with drivers inside: low dose for the cab switches to high dose for the cargo

  • A balanced and lightweight axle load doesn’t do harm to the road surface


CTXscan-M - General Specifications

GENERAL SPECIFICATIONS

Inspected object dimensions (L x W x H), m

30 х 3 х 4,5*

Deployment time, min

less than 30

Throughput, vehicles/trucks per hour

up to 25

Scan speed, m/min

6, 12, 24

X-ray generators energy, MeV

Switched between 6 and 9

Penetration

320 mm of steel

Visual and processing means

computers with several high resolution TFT displays and a special image and data storage system

Digital image processing

Image storage, magnification up to 16 times, sharp and contrast enhancement, filtering, segmentation

Power

built-in generator or three-phase AC power circuit 380V/50Hz

Power consumption, kW

less than 16 kwt in work mode and 5 kwt in standby mode

Operating temperature/Humidity

From -50°С to +50°С/up to 90%*

* Can be optimized according to the customer’s needs
