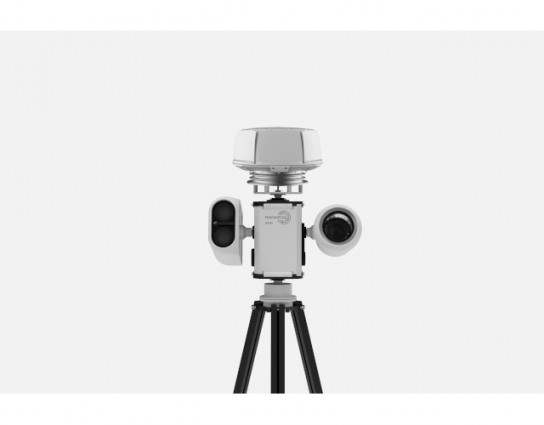

GR-800

Compact Pulse-Doppler ground target motion detection radar.
Protected area up to 2,100,000 sq.m

It is designed to detect:

  • People
  • Vehicles
  • Boats

FEATURES

  • Track update 4 times per second
    Azimuth accuracy ± 0.50
  • No moving parts
    Zero maintenance cost
  • DPA function
    Increases the detection range to up to 1200 m.
  • Compact size 360 х 180 mm
    Sealed housing
  • PoE+ Technology
    Single cable connection
    Quick installation
  • 24/7 protection in any weather conditions


GR-800 - General Specifications

RADAR CHARACTERISTICS

GR-800

Radar type

Pulse-Doppler, solid-state, kinematic-free

Operating frequency

Range C (5.7÷5.8 GHz)

Radar azimuth coverage, deg.

360°

Detection range (Standard / Maximum)

800 m / 1200 m

Instrumented detection range (DPA)

FOV—360°: Person/ Vehicle/Boat

800 m

FOV—180°: Person/Vehicle/Boat

1000 m

FOV—120°: Person/ Vehicle/Boat

1200 m

Simultaneously tracked targets

up to 32

Minimum SCS (scattering cross section)

0.25 m²—People

False alarm filter

Intellectual

Dynamic power distribution

Available

Power/data transmission

PoE+ / Ethernet

Operating temperature

−40°C to +60°C
